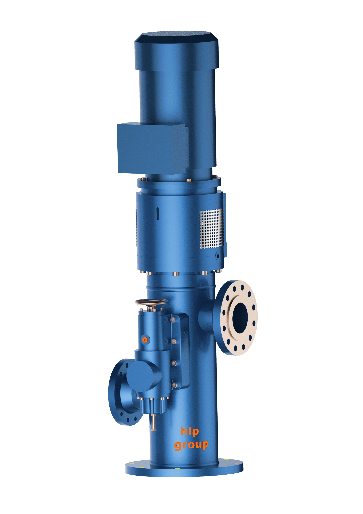

Three Spindle Screw Pumps HLP-3-S Series

HLP Three Spindle Screw Pumps which are 100% manufactured in The Netherlands.

The pump solutions are based on the Next Gen. engineering and manufacturing performances. The optimised screw profiles, length, diameter and pitch, are perfectly in balance to reach the maximum efficiencies which can be increased with 10% to 15% compare to the former standards.

These pumps can be applied for:

Oil & Gas
Tank Terminals
Bitumen
Fuels
Downstream
Petrochemicals
Engine Room Pumps
Cargo Pumps and Systems
Refinery
Power Generation
Marine
Industry
Pipeline
FPSO
Special Applications

Features

Capacity: 1 – 650 m3|h
Pressure: 280 bar [max]; special design for higher pressures
Speed range: 10 – 3.000 rpm
Temperature: 250°C
Viscosity min : 0,6 cSt
Viscosity max : 5.000 cSt
Density max: 1,5 kg|dm3
Self-priming
Variable speed control with constat pressure
High Efficiency [low absorbed power]
Low carbon footprint
Low NPSH
Multiple fluid types

Technical details

Casing and Liner are two separate parts
Screw shafts: Manufactured as one part
Materials Casing: Casted | Welded:
Materials Liner: Casted
Material Screws: Steel
Taylor made screw pitch
Customized seal solutions
Taylor made design
Horizontal | Vertical | Submerged
Flange positions: Horizontal, Inline, Top, Axial or in combination
Heating Jacket
Foot heating
Oil or Grease bearings
Sealing: Soft Packing; Single Seal, Double Seal or Special
Interchangeable within the existing dimensions

Accessories

Forced cooling
API Seal plan
Flush plan [HLP – API]
Spacer Coupling
Instrumentation
Smart Control Unit

Design standards

HLP Standard
API 676
DIN
VDMA
EAC
ATEX
Taylor made (customer specific)
