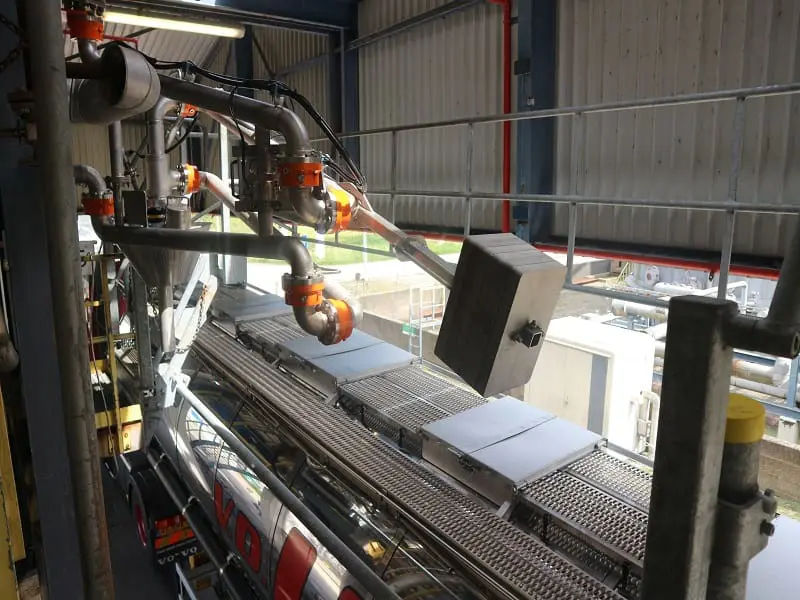

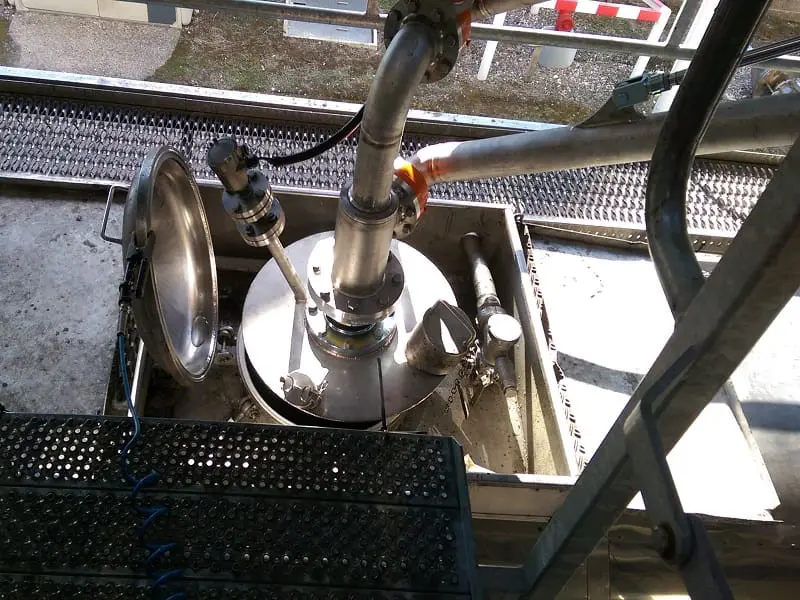

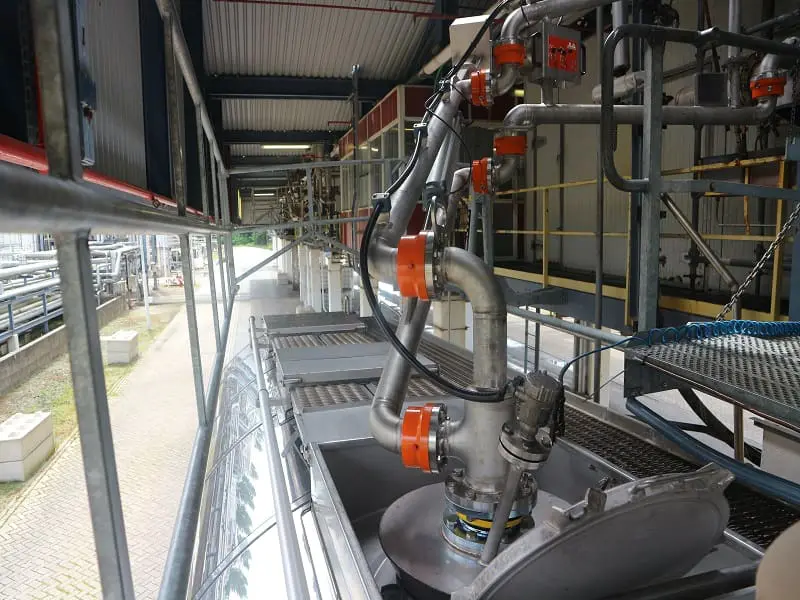

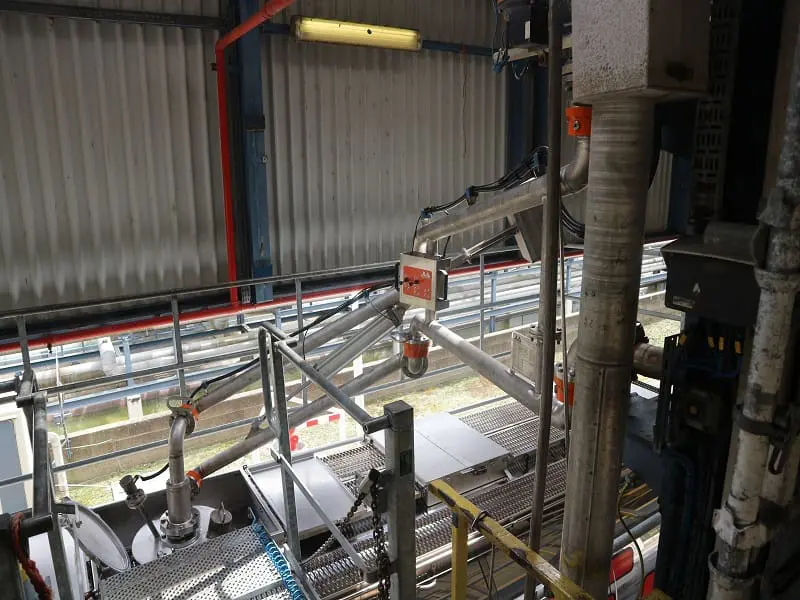

Top Loading Arm

Top Loading Arms are used to load truck or trains from the top. Suitable for all liquids and vapours between -50 and +200°C Available in diameters 2″ up to 8″

Features

Balanced by counterweight or spring balanced
Vacuum resistant swivel joints with Zero Emission
Optional with pneumatical or hydraulical operation

Technical details

Manually, pneumatically or hydraulically operated
2” up to 8”
– 50 °C / + 200 °C
Suitable for almost all (petro-) chemicals, liquids and gases.
150# and 300#
Available in carbon steel and stainless steel.

Accessories

Quick coupler
Vapour line
Product valve
Level detection
Drain and purge connections
Tracing and insulation
Thermal heating by jacketed pipe
Parking lock
Parking sensor
Telescopic drop pipe
Vapour cone
Press down cylinder

Design standards

TA Lüft VDI 2440
CE (PED & ATEX)

Swivel Joints

Equipped with JLA vacuum resistant zero emisison swivel joints

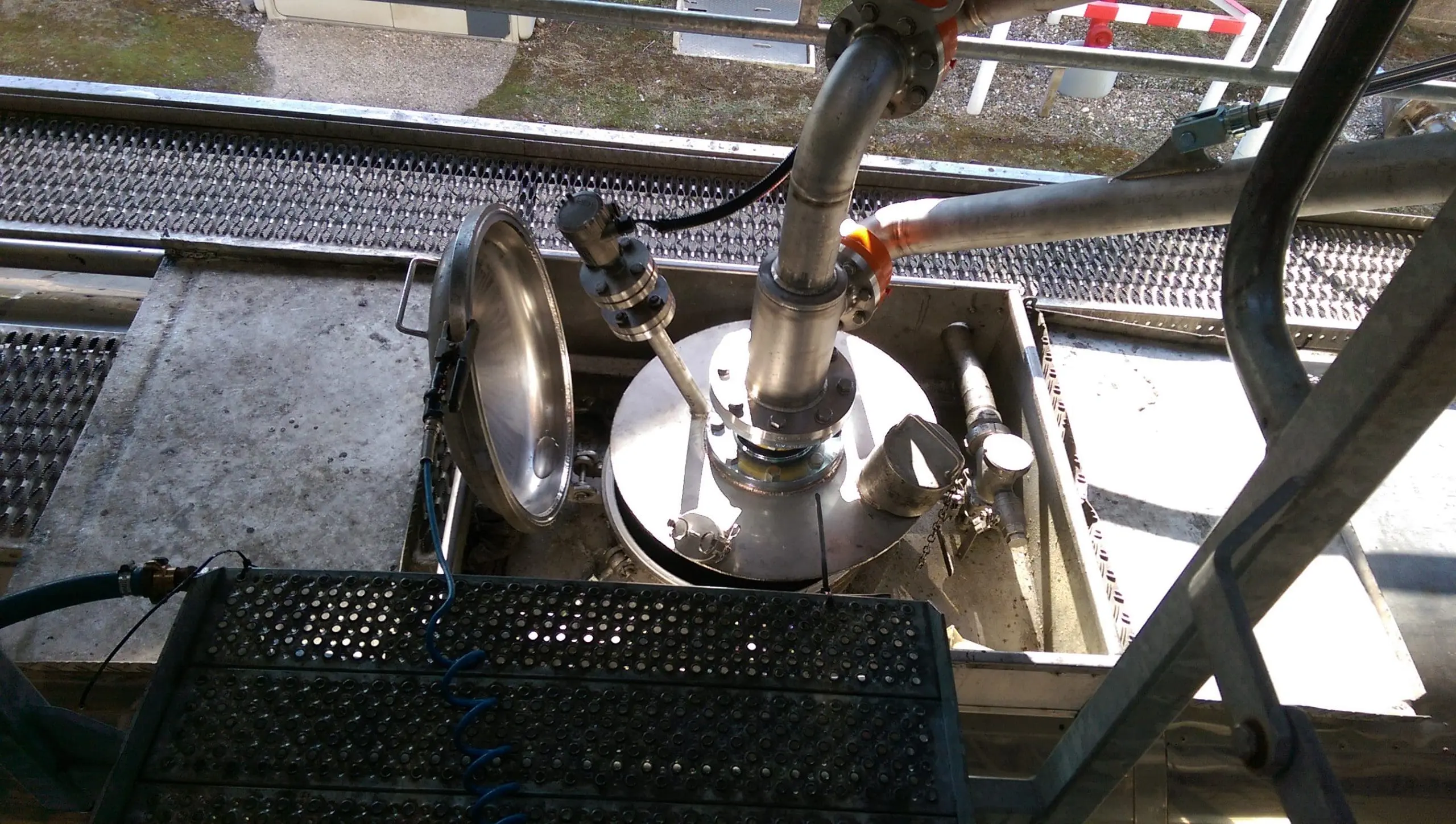

Vapour Cone

Optionally provided with vapour cone

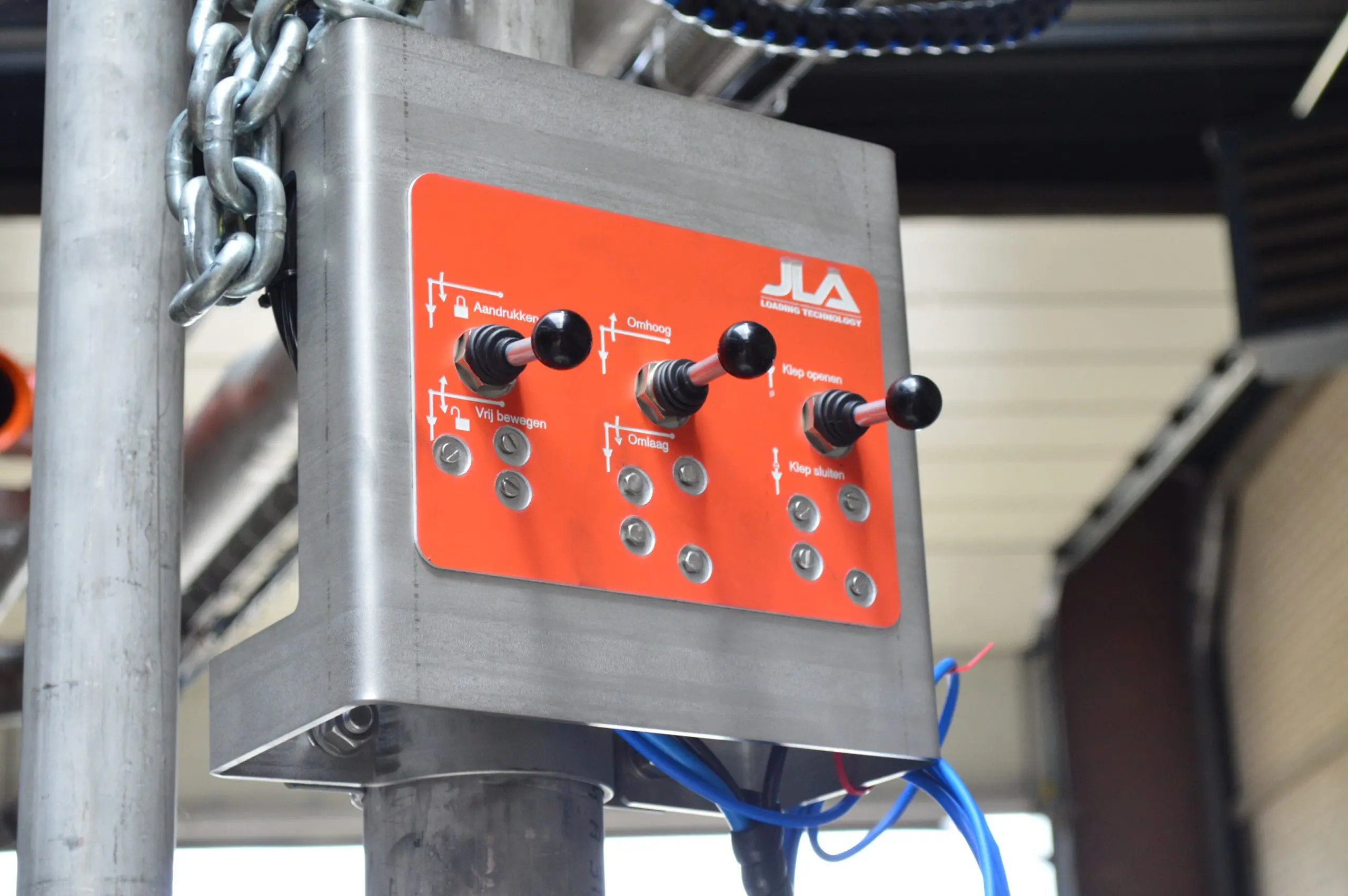

Control panel

Optional with pneumatic or hydraulic controlled operation
