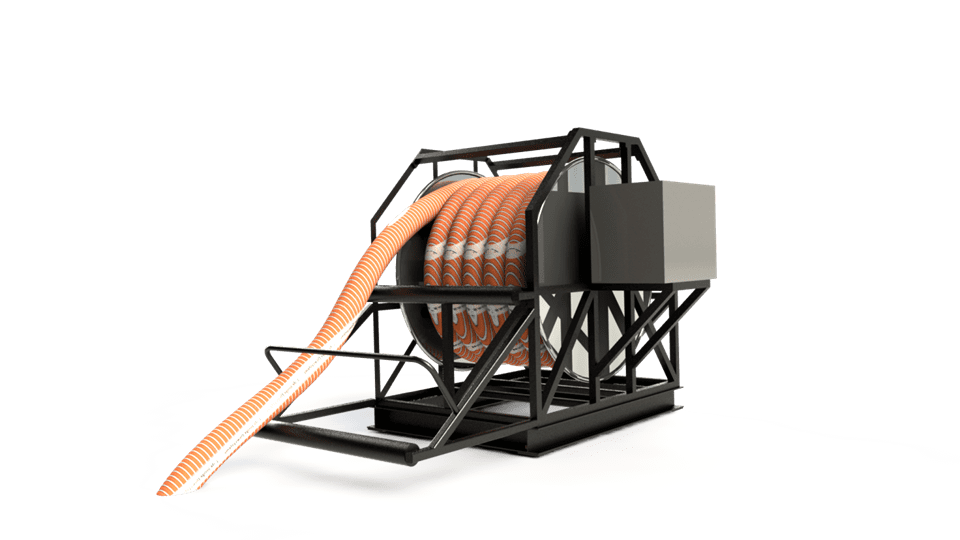

Standard Hose Reel

Available in 2″ up to 10″.  Ideal for vapour capturing from ships at temperatures from -50 up to + 100°C

Features

  • Electric, pneumatic or hydraulic operation
  • Flexible and wide working range
  • Minimal wear and tear on hoses
  • Improved operator ergonomics
  • Minimal space required and minimal jetty loads
  • Vacuum Resistant Swivel Joint
  • Zero Emission Swivel Joints according to TA Luft VDI 2440
  • Hydraulically, electrically or pneumatically operated
  • Actuated by winch
  • 1” up to 10”
  • – 50 °C / + 200 °C
  • Suitable for almost all (petro-) chemicals, liquids and gases.
  • 150# and 300#
  • Available in all materials, e.g.: Carbon Steel, Stainless Steel and Stainless Steel 316Ti and composite
  • Integrated pigstations, flame arrestors and piping
  • Quick coupler
  • Vapour line
  • Product valve
  • Level detection
  • Drain and purge connections
  • Tracing and insulation
  • Thermal heating by jacketed pipe
  • Parking lock
  • Parking sensor
  • Telescopic drop pipe
  • Vapour cone
  • Press down cylinder
